Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord Struct Reference

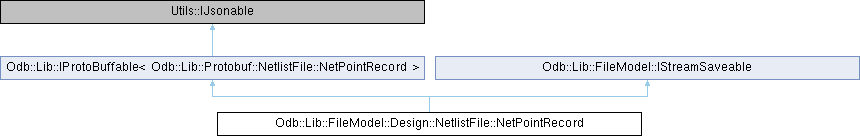

Inheritance diagram for Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord:

Public Types
enum	AccessSide { Top , Down , Both , Inner }
typedef std::vector< std::shared_ptr< NetPointRecord > >	Vector

Public Member Functions
std::unique_ptr< Odb::Lib::Protobuf::NetlistFile::NetPointRecord >	to_protobuf () const override
void	from_protobuf (const Odb::Lib::Protobuf::NetlistFile::NetPointRecord &message) override
bool	Save (std::ostream &os) override
Public Member Functions inherited from Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::NetlistFile::NetPointRecord >
bool	to_pbstring (std::string &pb_string) const
bool	from_pbstring (const std::string &pb_string)
bool	to_stream (std::ostream &outputStream) const
bool	from_stream (std::istream &inputStream)
std::string	to_json () const override
void	from_json (const std::string &json) override

Public Attributes
unsigned int	netNumber
double	radius
double	x
double	y
AccessSide	side
double	width
double	height
char	epoint
char	exp
bool	commentPoint
double	staggeredX
double	staggeredY
double	staggeredRadius
double	viaPoint
double	fiducialPoint
double	testPoint
char	testExecutionSide

Static Public Attributes
static const Utils::EnumMap< AccessSide >	accessSideMap

Detailed Description

Definition at line 36 of file NetlistFile.h.

Member Typedef Documentation

Vector

typedef std::vector<std::shared_ptr<NetPointRecord> > Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::Vector

Definition at line 69 of file NetlistFile.h.

Member Enumeration Documentation

AccessSide

enum Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::AccessSide

Definition at line 38 of file NetlistFile.h.

Member Function Documentation

from_protobuf()

void Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::from_protobuf ( const Odb::Lib::Protobuf::NetlistFile::NetPointRecord &  message )

overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::NetlistFile::NetPointRecord >.

Definition at line 427 of file NetlistFile.cpp.

Save()

bool Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::Save ( std::ostream &  os )

overridevirtual

Implements Odb::Lib::FileModel::IStreamSaveable.

Definition at line 459 of file NetlistFile.cpp.

to_protobuf()

std::unique_ptr< Protobuf::NetlistFile::NetPointRecord > Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::to_protobuf ( ) const

overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::NetlistFile::NetPointRecord >.

Definition at line 402 of file NetlistFile.cpp.

Member Data Documentation

accessSideMap

const Utils::EnumMap<AccessSide> Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::accessSideMap

inlinestatic

Initial value:

{
                {
                    "Top",
                    "Down",
                    "Both",
                    "Inner"
                }
            }

Definition at line 71 of file NetlistFile.h.

commentPoint

bool Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::commentPoint

Definition at line 55 of file NetlistFile.h.

epoint

char Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::epoint

Definition at line 53 of file NetlistFile.h.

exp

char Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::exp

Definition at line 54 of file NetlistFile.h.

fiducialPoint

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::fiducialPoint

Definition at line 60 of file NetlistFile.h.

height

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::height

Definition at line 52 of file NetlistFile.h.

netNumber

unsigned int Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::netNumber

Definition at line 46 of file NetlistFile.h.

radius

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::radius

Definition at line 47 of file NetlistFile.h.

side

AccessSide Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::side

Definition at line 50 of file NetlistFile.h.

staggeredRadius

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::staggeredRadius

Definition at line 58 of file NetlistFile.h.

staggeredX

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::staggeredX

Definition at line 56 of file NetlistFile.h.

staggeredY

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::staggeredY

Definition at line 57 of file NetlistFile.h.

testExecutionSide

char Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::testExecutionSide

Definition at line 63 of file NetlistFile.h.

testPoint

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::testPoint

Definition at line 61 of file NetlistFile.h.

viaPoint

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::viaPoint

Definition at line 59 of file NetlistFile.h.

width

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::width

Definition at line 51 of file NetlistFile.h.

x

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::x

Definition at line 48 of file NetlistFile.h.

y

double Odb::Lib::FileModel::Design::NetlistFile::NetPointRecord::y

Definition at line 49 of file NetlistFile.h.

---

The documentation for this struct was generated from the following files:

• OdbDesignLib/FileModel/Design/NetlistFile.h
• OdbDesignLib/FileModel/Design/NetlistFile.cpp
