Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord Struct Reference

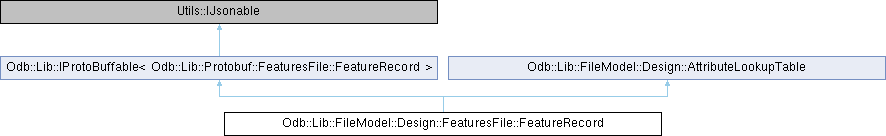

Inheritance diagram for Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord:
Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::FeaturesFile::FeatureRecord > Odb::Lib::FileModel::Design::AttributeLookupTable

Public Types

enum class  Type {
  Arc , Pad , Surface , Barcode ,
  Text , Line
}

typedef std::vector< std::shared_ptr< FeatureRecord > > Vector


Public Member Functions

const ContourPolygon::Vector & GetContourPolygons () const

std::unique_ptr< Odb::Lib::Protobuf::FeaturesFile::FeatureRecord > to_protobuf () const override

void from_protobuf (const Odb::Lib::Protobuf::FeaturesFile::FeatureRecord &message) override

- Public Member Functions inherited from Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::FeaturesFile::FeatureRecord >
bool to_pbstring (std::string &pb_string) const

bool from_pbstring (const std::string &pb_string)

bool to_stream (std::ostream &outputStream) const

bool from_stream (std::istream &inputStream)

std::string to_json () const override

void from_json (const std::string &json) override

- Public Member Functions inherited from Odb::Lib::FileModel::Design::AttributeLookupTable
const std::map< std::string, std::string > & GetAttributeLookupTable () const

bool ParseAttributeLookupTable (const std::string &AttributeLookupTableString)


Public Attributes

Type type

double xs

double ys

double xe

double ye

double x

double y

int apt_def_symbol_num = -1

double apt_def_resize_factor

double xc

double yc

bool cw

std::string font

double xsize

double ysize

double width_factor

std::string text

int version

int sym_num = -1

Polarity polarity

int dcode

unsigned int id

int orient_def

double orient_def_rotation

ContourPolygon::Vector m_contourPolygons


Static Public Attributes

static constexpr const char * LINE_TOKEN = "L"

static constexpr const char * PAD_TOKEN = "P"

static constexpr const char * TEXT_TOKEN = "T"

static constexpr const char * ARC_TOKEN = "A"

static constexpr const char * BARCODE_TOKEN = "B"

static constexpr const char * SURFACE_START_TOKEN = "S"

static constexpr const char * SURFACE_END_TOKEN = "SE"


Additional Inherited Members

- Protected Attributes inherited from Odb::Lib::FileModel::Design::AttributeLookupTable
std::map< std::string, std::string > m_attributeLookupTable


Detailed Description

Definition at line 24 of file FeaturesFile.h.

Member Typedef Documentation

◆ Vector

typedef std::vector<std::shared_ptr<FeatureRecord> > Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::Vector

Definition at line 75 of file FeaturesFile.h.

Member Enumeration Documentation

◆ Type

enum class Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::Type
strong

Definition at line 28 of file FeaturesFile.h.

Constructor & Destructor Documentation

◆ ~FeatureRecord()

Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::~FeatureRecord ( )

Definition at line 947 of file FeaturesFile.cpp.

Member Function Documentation

◆ from_protobuf()

void Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::from_protobuf ( const Odb::Lib::Protobuf::FeaturesFile::FeatureRecord &  message)
overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::FeaturesFile::FeatureRecord >.

Definition at line 1001 of file FeaturesFile.cpp.

◆ GetContourPolygons()

const ContourPolygon::Vector & Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::GetContourPolygons ( ) const

Definition at line 952 of file FeaturesFile.cpp.

◆ to_protobuf()

std::unique_ptr< Odb::Lib::Protobuf::FeaturesFile::FeatureRecord > Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::to_protobuf ( ) const
overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::FeaturesFile::FeatureRecord >.

Definition at line 957 of file FeaturesFile.cpp.

Member Data Documentation

◆ apt_def_resize_factor

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::apt_def_resize_factor

Definition at line 47 of file FeaturesFile.h.

◆ apt_def_symbol_num

int Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::apt_def_symbol_num = -1

Definition at line 46 of file FeaturesFile.h.

◆ ARC_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::ARC_TOKEN = "A"
inlinestaticconstexpr

Definition at line 84 of file FeaturesFile.h.

◆ BARCODE_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::BARCODE_TOKEN = "B"
inlinestaticconstexpr

Definition at line 85 of file FeaturesFile.h.

◆ cw

bool Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::cw

Definition at line 51 of file FeaturesFile.h.

◆ dcode

int Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::dcode

Definition at line 65 of file FeaturesFile.h.

◆ font

std::string Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::font

Definition at line 54 of file FeaturesFile.h.

◆ id

unsigned int Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::id

Definition at line 66 of file FeaturesFile.h.

◆ LINE_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::LINE_TOKEN = "L"
inlinestaticconstexpr

Definition at line 81 of file FeaturesFile.h.

◆ m_contourPolygons

ContourPolygon::Vector Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::m_contourPolygons

Definition at line 71 of file FeaturesFile.h.

◆ orient_def

int Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::orient_def

Definition at line 68 of file FeaturesFile.h.

◆ orient_def_rotation

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::orient_def_rotation

Definition at line 69 of file FeaturesFile.h.

◆ PAD_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::PAD_TOKEN = "P"
inlinestaticconstexpr

Definition at line 82 of file FeaturesFile.h.

◆ polarity

Polarity Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::polarity

Definition at line 64 of file FeaturesFile.h.

◆ SURFACE_END_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::SURFACE_END_TOKEN = "SE"
inlinestaticconstexpr

Definition at line 87 of file FeaturesFile.h.

◆ SURFACE_START_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::SURFACE_START_TOKEN = "S"
inlinestaticconstexpr

Definition at line 86 of file FeaturesFile.h.

◆ sym_num

int Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::sym_num = -1

Definition at line 63 of file FeaturesFile.h.

◆ text

std::string Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::text

Definition at line 57 of file FeaturesFile.h.

◆ TEXT_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::TEXT_TOKEN = "T"
inlinestaticconstexpr

Definition at line 83 of file FeaturesFile.h.

◆ type

Type Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::type

Definition at line 38 of file FeaturesFile.h.

◆ version

int Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::version

Definition at line 58 of file FeaturesFile.h.

◆ width_factor

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::width_factor

Definition at line 56 of file FeaturesFile.h.

◆ x

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::x

Definition at line 45 of file FeaturesFile.h.

◆ xc

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::xc

Definition at line 50 of file FeaturesFile.h.

◆ xe

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::xe

Definition at line 42 of file FeaturesFile.h.

◆ xs

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::xs

Definition at line 41 of file FeaturesFile.h.

◆ xsize

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::xsize

Definition at line 55 of file FeaturesFile.h.

◆ y

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::y

Definition at line 45 of file FeaturesFile.h.

◆ yc

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::yc

Definition at line 50 of file FeaturesFile.h.

◆ ye

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::ye

Definition at line 42 of file FeaturesFile.h.

◆ ys

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::ys

Definition at line 41 of file FeaturesFile.h.

◆ ysize

double Odb::Lib::FileModel::Design::FeaturesFile::FeatureRecord::ysize

Definition at line 55 of file FeaturesFile.h.
