Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord Struct Reference

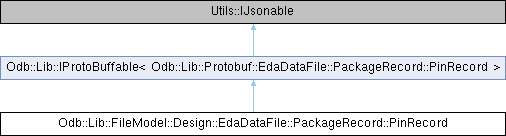

Inheritance diagram for Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord:

Public Types
enum class	Type { ThroughHole , Blind , Surface }
enum class	ElectricalType { Electrical , NonElectrical , Undefined }
enum class	MountType {   Smt , RecommendedSmtPad , MT_ThroughHole , RecommendedThroughHole ,   Pressfit , NonBoard , Hole , MT_Undefined }
typedef std::vector< std::shared_ptr< PinRecord > >	Vector
typedef std::map< std::string, std::shared_ptr< PinRecord > >	StringMap

Public Member Functions
std::unique_ptr< Odb::Lib::Protobuf::EdaDataFile::PackageRecord::PinRecord >	to_protobuf () const override
void	from_protobuf (const Odb::Lib::Protobuf::EdaDataFile::PackageRecord::PinRecord &message) override
Public Member Functions inherited from Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::EdaDataFile::PackageRecord::PinRecord >
bool	to_pbstring (std::string &pb_string) const
bool	from_pbstring (const std::string &pb_string)
bool	to_stream (std::ostream &outputStream) const
bool	from_stream (std::istream &inputStream)
std::string	to_json () const override
void	from_json (const std::string &json) override

Public Attributes
std::string	name
Type	type
double	xCenter
double	yCenter
double	finishedHoleSize
ElectricalType	electricalType
MountType	mountType
unsigned int	id
unsigned int	index
OutlineRecord::Vector	m_outlineRecords

Detailed Description

Definition at line 181 of file EdaDataFile.h.

Member Typedef Documentation

StringMap

typedef std::map<std::string, std::shared_ptr<PinRecord> > Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::StringMap

Definition at line 210 of file EdaDataFile.h.

Vector

typedef std::vector<std::shared_ptr<PinRecord> > Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::Vector

Definition at line 209 of file EdaDataFile.h.

Member Enumeration Documentation

ElectricalType

enum class Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::ElectricalType

strong

Definition at line 190 of file EdaDataFile.h.

MountType

enum class Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::MountType

strong

Definition at line 197 of file EdaDataFile.h.

Type

enum class Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::Type

strong

Definition at line 183 of file EdaDataFile.h.

Constructor & Destructor Documentation

~PinRecord()

Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::~PinRecord ( )

inline

Definition at line 212 of file EdaDataFile.h.

Member Function Documentation

from_protobuf()

void Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::from_protobuf ( const Odb::Lib::Protobuf::EdaDataFile::PackageRecord::PinRecord &  message )

overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::EdaDataFile::PackageRecord::PinRecord >.

Definition at line 1707 of file EdaDataFile.cpp.

to_protobuf()

std::unique_ptr< Odb::Lib::Protobuf::EdaDataFile::PackageRecord::PinRecord > Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::to_protobuf ( ) const

overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::EdaDataFile::PackageRecord::PinRecord >.

Definition at line 1692 of file EdaDataFile.cpp.

Member Data Documentation

electricalType

ElectricalType Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::electricalType

Definition at line 222 of file EdaDataFile.h.

finishedHoleSize

double Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::finishedHoleSize

Definition at line 221 of file EdaDataFile.h.

id

unsigned int Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::id

Definition at line 224 of file EdaDataFile.h.

index

unsigned int Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::index

Definition at line 225 of file EdaDataFile.h.

m_outlineRecords

OutlineRecord::Vector Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::m_outlineRecords

Definition at line 227 of file EdaDataFile.h.

mountType

MountType Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::mountType

Definition at line 223 of file EdaDataFile.h.

name

std::string Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::name

Definition at line 217 of file EdaDataFile.h.

type

Type Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::type

Definition at line 218 of file EdaDataFile.h.

xCenter

double Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::xCenter

Definition at line 219 of file EdaDataFile.h.

yCenter

double Odb::Lib::FileModel::Design::EdaDataFile::PackageRecord::PinRecord::yCenter

Definition at line 220 of file EdaDataFile.h.

---

The documentation for this struct was generated from the following files:

• OdbDesignLib/FileModel/Design/EdaDataFile.h
• OdbDesignLib/FileModel/Design/EdaDataFile.cpp
