Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord Struct Reference

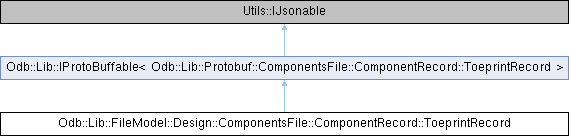

Inheritance diagram for Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord:
Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord >

Public Types

typedef std::map< std::string, std::shared_ptr< ToeprintRecord > > StringMap

typedef std::vector< std::shared_ptr< ToeprintRecord > > Vector


Public Member Functions

std::unique_ptr< Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord > to_protobuf () const override

void from_protobuf (const Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord &message) override

- Public Member Functions inherited from Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord >
bool to_pbstring (std::string &pb_string) const

bool from_pbstring (const std::string &pb_string)

bool to_stream (std::ostream &outputStream) const

bool from_stream (std::istream &inputStream)

std::string to_json () const override

void from_json (const std::string &json) override


Public Attributes

unsigned int pinNumber

double locationX

double locationY

double rotation

bool mirror

unsigned int netNumber

unsigned int subnetNumber

std::string name


Static Public Attributes

static constexpr const char * RECORD_TOKEN = "TOP"


Detailed Description

Definition at line 59 of file ComponentsFile.h.

Member Typedef Documentation

◆ StringMap

typedef std::map<std::string, std::shared_ptr<ToeprintRecord> > Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::StringMap

Definition at line 75 of file ComponentsFile.h.

◆ Vector

typedef std::vector<std::shared_ptr<ToeprintRecord> > Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::Vector

Definition at line 76 of file ComponentsFile.h.

Member Function Documentation

◆ from_protobuf()

void Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::from_protobuf ( const Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord &  message)
overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord >.

Definition at line 283 of file ComponentsFile.cpp.

◆ to_protobuf()

std::unique_ptr< Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord > Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::to_protobuf ( ) const
overridevirtual

Implements Odb::Lib::IProtoBuffable< Odb::Lib::Protobuf::ComponentsFile::ComponentRecord::ToeprintRecord >.

Definition at line 269 of file ComponentsFile.cpp.

Member Data Documentation

◆ locationX

double Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::locationX

Definition at line 63 of file ComponentsFile.h.

◆ locationY

double Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::locationY

Definition at line 64 of file ComponentsFile.h.

◆ mirror

bool Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::mirror

Definition at line 66 of file ComponentsFile.h.

◆ name

std::string Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::name

Definition at line 69 of file ComponentsFile.h.

◆ netNumber

unsigned int Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::netNumber

Definition at line 67 of file ComponentsFile.h.

◆ pinNumber

unsigned int Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::pinNumber

Definition at line 62 of file ComponentsFile.h.

◆ RECORD_TOKEN

constexpr const char* Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::RECORD_TOKEN = "TOP"
inlinestaticconstexpr

Definition at line 72 of file ComponentsFile.h.

◆ rotation

double Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::rotation

Definition at line 65 of file ComponentsFile.h.

◆ subnetNumber

unsigned int Odb::Lib::FileModel::Design::ComponentsFile::ComponentRecord::ToeprintRecord::subnetNumber

Definition at line 68 of file ComponentsFile.h.
